AP-Series gauge
pressure sensors

The medium, the mounting and the electrical noise around a machine decide what a pressure reading is worth. Every AP-Series device ships as a finished instrument: welded stainless front end, piezoresistive sensing element, signal conditioning with temperature compensation, and the output stage — calibrated and tested as one unit.

0…40 bar
top range
± 0.5 % FS
accuracy
3 / 7
platforms / ranges

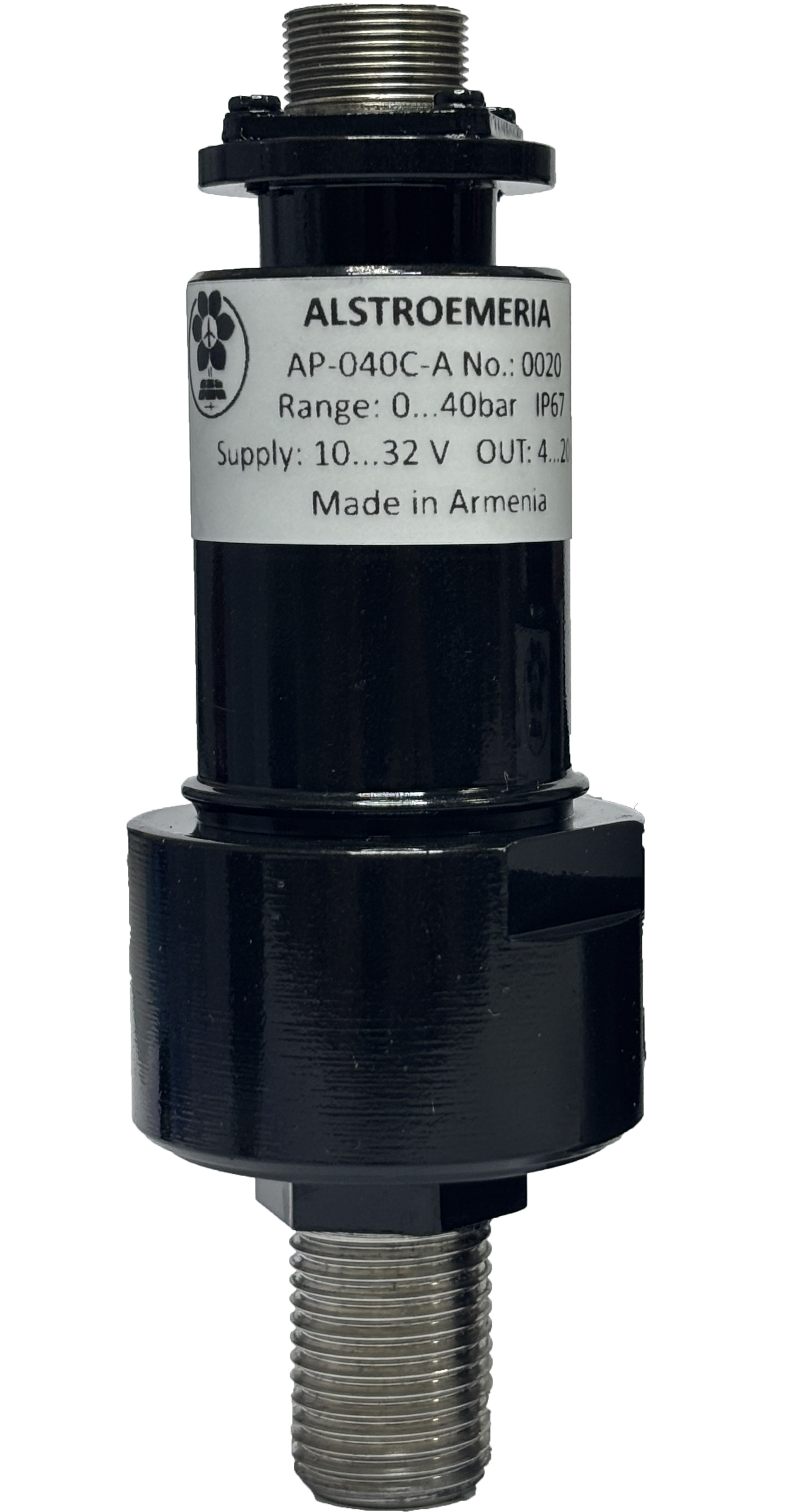

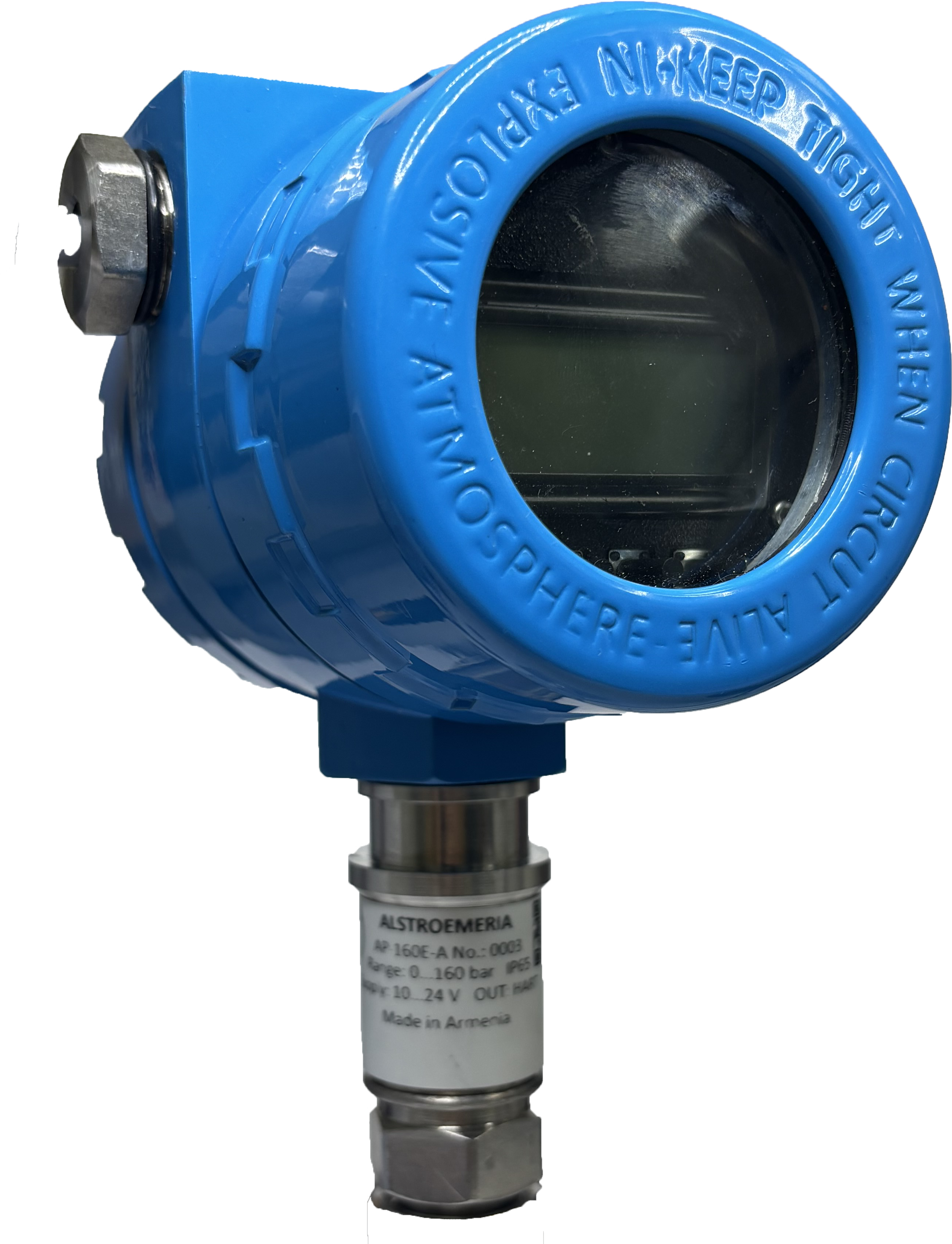

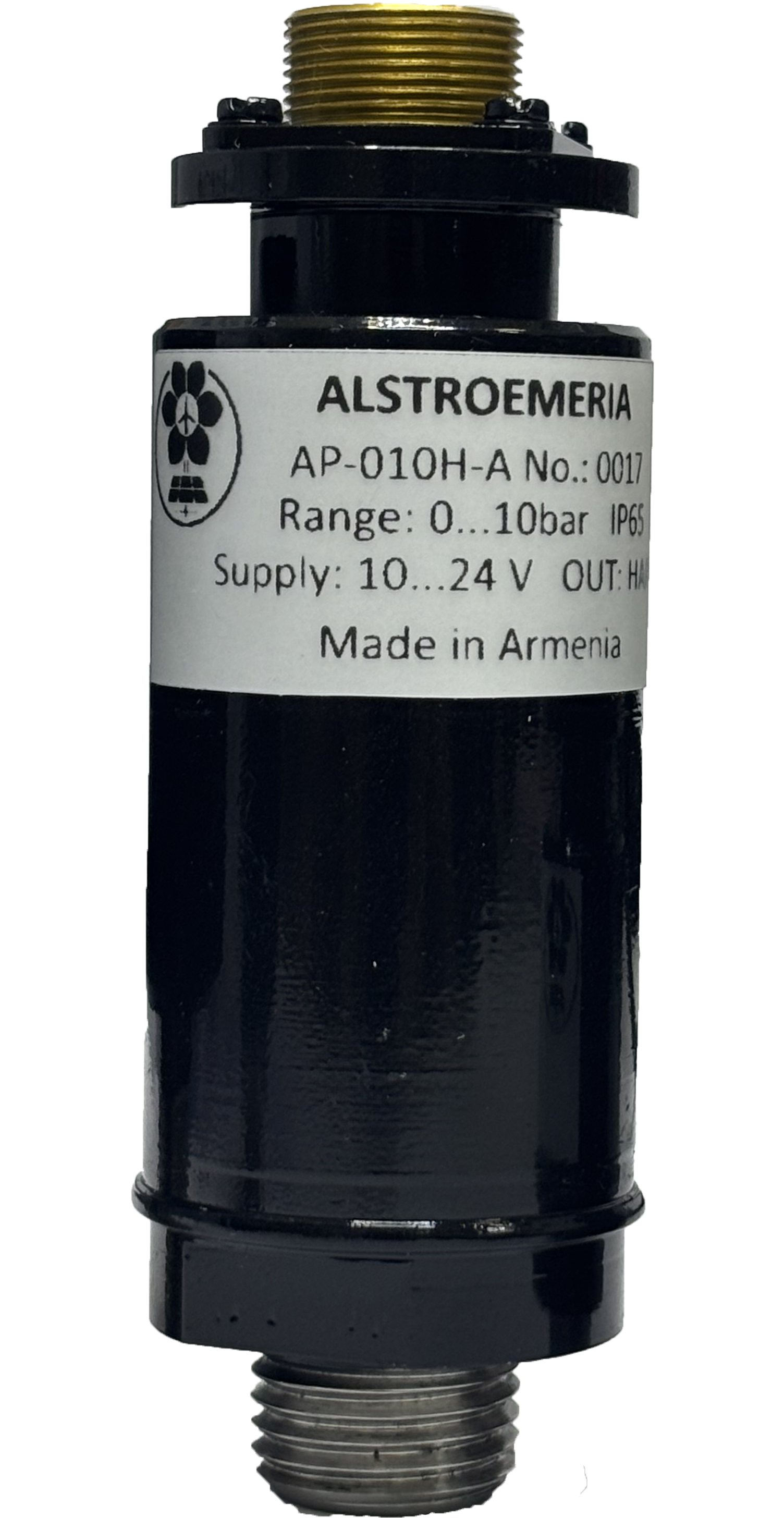

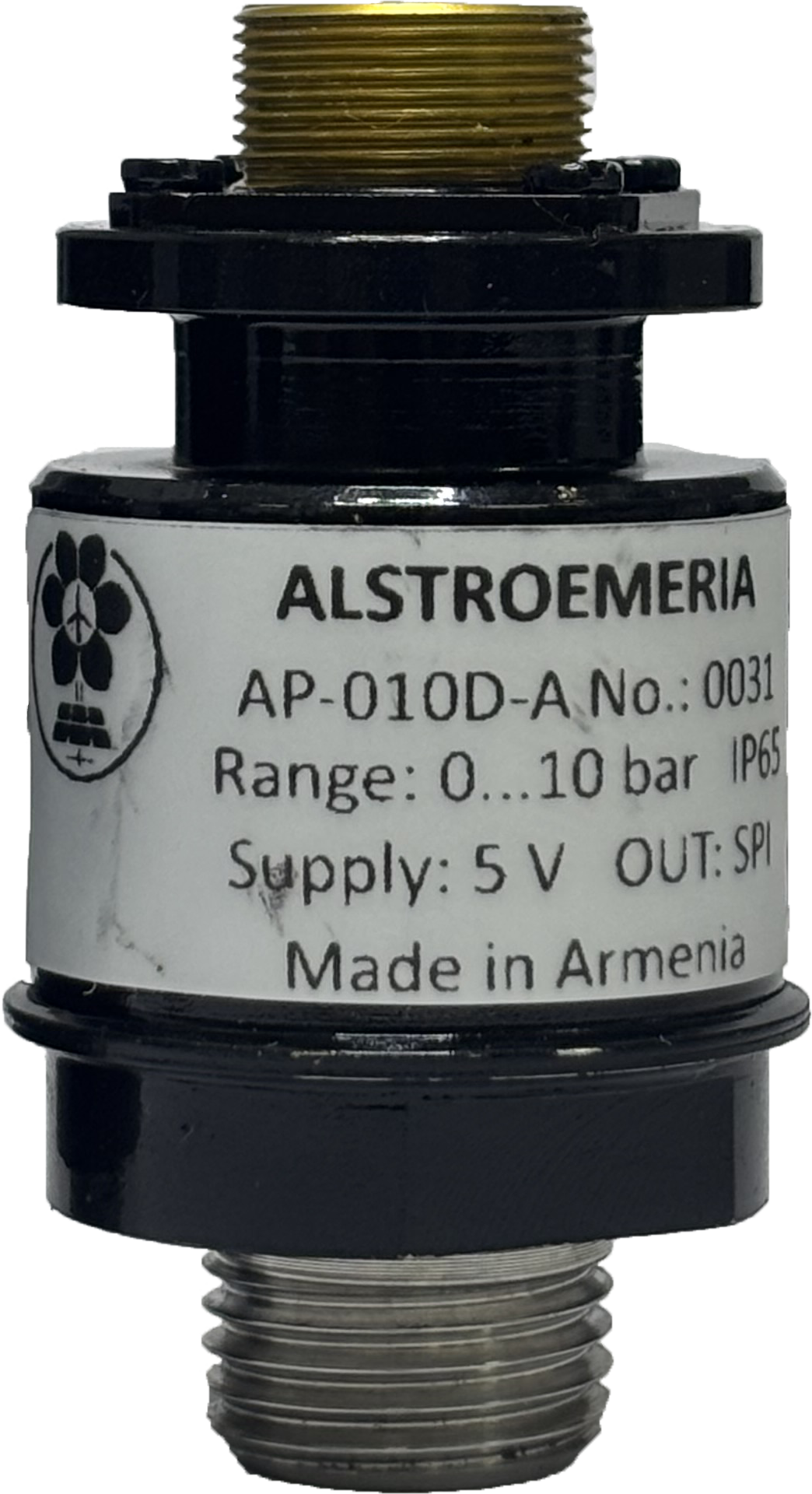

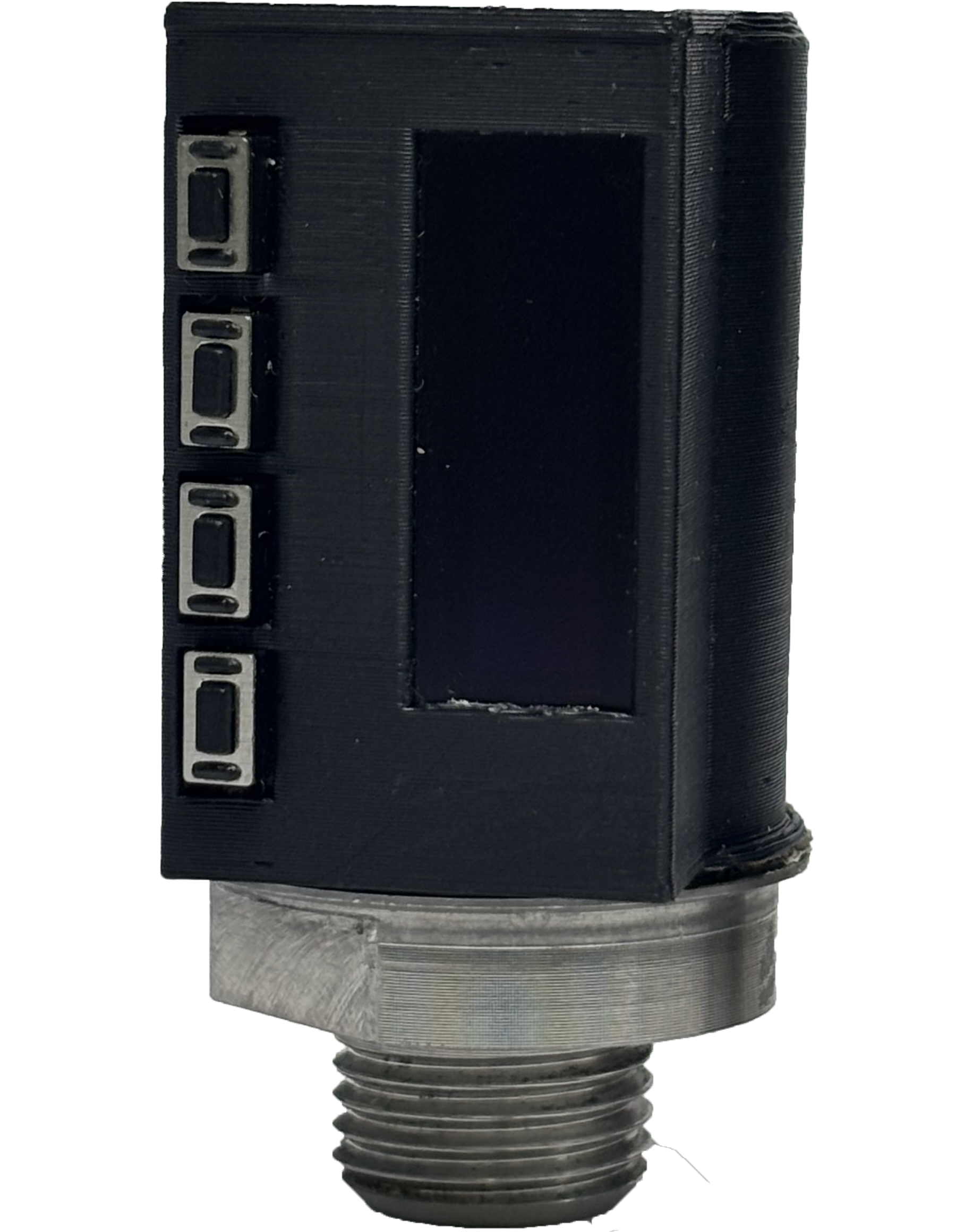

THE COMPLETE DEVICE — PRODUCT PHOTOS, PLACEHOLDER
Applications

Where the AP-Series earns its place

Industry & compressed air

Compressed air and pneumatics to 16 bar, where slow drift in the reading turns into wasted energy.

  • Compressed-air and instrument air
  • Line pressure at the filter inlet
  • Test benches and telemetry nodes

Water & utilities

Pumping stations, mains and treatment skids: outdoors, unattended, splashed, IP67 rated.

  • Pump and booster control
  • Zone pressure in dry chambers
  • Brackish-water RO up to 40 bar

HVAC-R & building plant

Chilled-water and heating loops, and the high side of refrigeration plant working under 40 bar.

  • Chilled-water and condenser loops
  • Refrigeration high side to 40 bar
  • Buffer tanks and heat exchangers
Platforms compared

Three platforms, one bridge

All three platforms use the same measuring principle — a four-arm piezoresistive bridge. Sensing elements are range-specific; the electronics platform and calibration procedure are common.

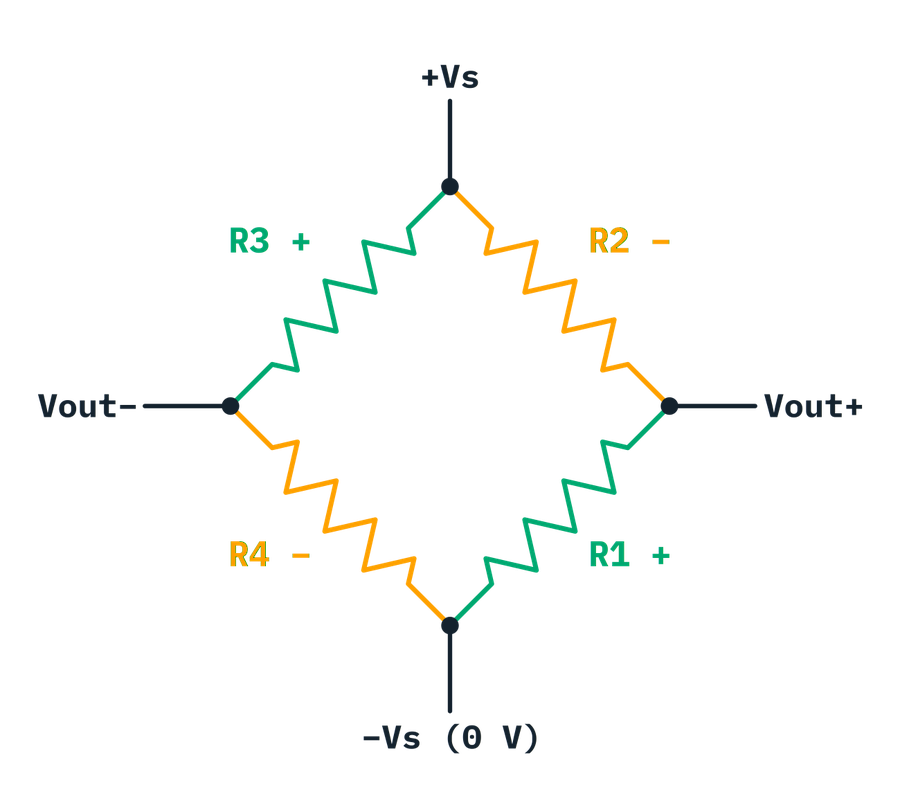

Wheatstone bridge diagram: R1 and R3 stretch, R2 and R4 compress

Four active arms

R1 and R3 stretch, R2 and R4 compress. The symmetric full bridge doubles the signal of a half bridge and cancels common-mode resistance drift; the residual zero and span errors over temperature are trimmed in the electronics.

Range coverage, by platform
Full-scale value per variant, bar — scaled to 40 bar
D — SPI digital
AP-001D
1 bar
AP-005D
5 bar
AP-010D
10 bar
AP-016D
16 bar
H — HART
AP-001H
1 bar
AP-005H
5 bar
AP-010H
10 bar
AP-016H
16 bar
C — 4…20 mA industrial
AP-004C
4 bar
AP-006C
6 bar
AP-016C
16 bar
AP-040C
40 bar
Operating temperature
H is the widest platform: −60…+85 °C
D — SPI
−40…+85 °C
H — HART
−60…+85 °C
C — 4…20 mA
−40…+85 °C
Housing length
HART and industrial need room for isolation — scaled to 130 mm
D — SPI
38 mm
H — HART
87 mm
C — 4…20 mA
116 mm

Part number, decoded

SeriesRangeOutputRevision

Full scale in bar, three digits.

ModelRangeAccuracyTemp.OutputSupplyDims Ø×LProtection
AP-001D-A0…1 bar± 0.5 % FS−40…+85 °CSPI5 VØ31 × 38 mmIP65
AP-005D-A0…5 bar± 0.5 % FS−40…+85 °CSPI5 VØ31 × 38 mmIP65
AP-010D-A0…10 bar± 0.5 % FS−40…+85 °CSPI5 VØ31 × 38 mmIP65
AP-016D-A0…16 bar± 0.5 % FS−40…+85 °CSPI5 VØ31 × 38 mmIP65
AP-001H-A0…1 bar± 0.5 % FS−60…+85 °CHART10…24 VØ31 × 87 mmIP65
AP-005H-A0…5 bar± 0.5 % FS−60…+85 °CHART10…24 VØ31 × 87 mmIP65
AP-010H-A0…10 bar± 0.5 % FS−60…+85 °CHART10…24 VØ31 × 87 mmIP65
AP-016H-A0…16 bar± 0.5 % FS−60…+85 °CHART10…24 VØ31 × 87 mmIP65
AP-004C-A0…4 bar± 0.5 % FS−40…+85 °C4…20 mA10…32 VØ34 × 116 mmIP65 / IP67
AP-006C-A0…6 bar± 0.5 % FS−40…+85 °C4…20 mA10…32 VØ34 × 116 mmIP65 / IP67
AP-016C-A0…16 bar± 0.5 % FS−40…+85 °C4…20 mA10…32 VØ34 × 116 mmIP65 / IP67
AP-040C-A0…40 bar± 0.5 % FS−40…+85 °C4…20 mA10…32 VØ34 × 116 mmIP65 / IP67

xxx — range code, three digits of full scale in bar. 1 bar = 0.1 MPa = 14.5 psi. All devices are gauge (relative to ambient). Custom ranges, calibration certificates and evaluation samples on request — info@alstroemeria.am.
